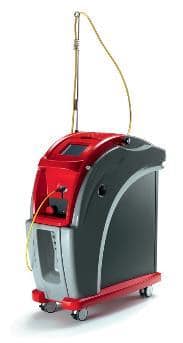

• The Hilterapia range of therapeutic lasers use the patented HILT® (High Intensity Laser Therapy) laser beam. The HIRO 3.0 reaches power peaks of 3kW from a superpulsed Nd:YAG laser source delivering up to 15 W cm².

    • HILT® delivers a high energy impulse that efficiently heals deep-seated pathologies. The duration and frequency of the HILT® impulse means that its use is always safe, because it constantly maintains the skin temperature below the thermal damage threshold.

      The high intensity power, unattained by other laser technologies currently available, allows effective treatment of deep chronic lesions including the bone-tendon-muscle interface like osteoarthritis.  The therapy provides a simultaneous analgesic, anti-inflammatory and antioedema effect. In addition it is reparative and regenerative.

    • The Photomechanical Effect

      A distinctive characteristic of the HILT® pulse is its ability to induce photomechanical-type effects.

      The strength of these effects is directly proportional to the laser emission intensity and inversely proportional to the pulse duration. Thanks to the short pulse duration and the very high intensity, Hilterapia® has the right characteristics to generate this phenomenon resulting in therapeutic effects.

    • Service and support

      Service, warranty and support are provided locally in Australia by Heal With Laser. Users log-in to the membership area and request service or post a query.

    • Training

      Australian-based support and training includes

      • on-line videos for convenient in-surgery and support staff training.
      • assistance with installation and set-up.
      • ongoing instruction manuals.
      • guides and updates (including how to use the equipment and get the most out of the tools).
      • Access to state-of-the-art webinars and courses with world experts in pain management and laser therapy.
      • Training updates can be delivered by on-line log-in.
    • Membership

      Exclusive access to ongoing support, training, updated treatment protocols, latest research in laser therapy from ASAlaser Research Centre and international journals.

    • Specifications

    • Technical characteristics
      • Laser system employing the patented HILT® pulse
        • High Intensity pulsed Nd:YAG Laser
        •  Peak Power (max): 3 kW
        • Intensity (max): 15.000 Wcm-²
        • Energy per pulse (max): 350 mj
        • Average power (max): 10.5 w
        • Fluence (max): 1780 mjcm-²
        • Pulse duration ≤ 100 μs
      • Standard handpiece for pain therapy
      • Patented DJD handpiece for regenerative therapy
      • User interface with graphic backlit colour touch screen display
        • New operating system Touch 1.0
        • guided protocol for body area treatment
        • protocol for pathology treatment
        • anti-oedema protocol
        • standard protocol
      • Programs to modify and save personal parameters
      • Emitted energy calculated automatically according to selected functions
    • Alarms and safety
      • Acoustic signal during the therapy
      • Date and time
      • Language option
      • Machine status signals and alarms
      • Emergency stop button for laser emission
      • Laser emission warning light
      • Interlock
      Included accessories
      • 3 Laser Safety goggles
      Size and weight
      • 30 x 70 x 78 cm; 40 Kg
      Power supply
      • Specifications

        230Vdc 50-60Hz 1840 VA
